754522-B21 HPE ProLiant DL160 Gen9 Server 4-Bay LFF CTO Server

HP ProLiant DL160 Gen9 Non-Hot-Plug 4-LFF Chassis CTO Server HPN: 754522-B21

• Brand: HPE
• Part #: 754522-B21
• Specs:-
•   ::  Type: CTO rackmount server
• Options included
•   ::  Mainboard: HPN: 779094-001 ( System I/O board (motherboard) assembly - For Intel Xeon E5-2600 series v3 processors only - Includes the system I/O board)
•   ::  Backplane: HPN: 779107-001 ( 4-bay non-hot-plug large form factor (LFF) backplane assembly - Includes the metal plate with four drive connector cable assembly (including power and mini-SAS integrated cable ends) - Mounts on the rear of the hard drive cage)
•   ::  Fan assembly: HPN: 779103-001 ( Hot-swap dual-rotor fan module assembly - Includes the fan assembly with integrated cable assembly (Up to 7 modules are used)
•   ::  Power Supply: HPN: 766879-001 ( 550 watt AC power supply assembly (non-hot-plug) - Up to 89% efficiency, 100-240VAC at 50-60Hz nominal input - Includes two internal integrated cables (connects to the system I/O board))
•   ::  Heatsink: HPN: 779104-001 ( Screw-down type processor heatsink - Screws to the system I/O board)
•   ::  iLO: HPN: 779095-001 (Optional iLO (Integrated Lights Out) adapter module: Provides a dedicated iLO management NIC port for the server - Plugs on the system I/O board and mounts in the lower right corner of the server)
•   ::  CMOS Battery: HPN: 234556-001 ( Battery for real-time clock (RTC) - 3.0 V, 220 mAh, lithium coin cell, 20 mm diameter, 3.2 mm height (CR2032)
•   ::  Filler: HPN: 691585-001 ( Hard drive blank (carrier) - To fill empty non-hot-plug large form factor (LFF) drive bays)
•   ::  Miscellaneous: HPN: 779102-001 ( HPE Smart Storage Battery holder - Mounts in the bottom left of the chassis in front of the power supply bay - For holding the FBWC battery)
•   ::  Smart Controller Battery: HPN: 750450-001 ( 96W Smart Storage Battery - For DL/ML/SL Generation 9 series of servers - One battery pack provides flash back write cache (FBWC) for all the drive controllers in the server - Connects to the system I/O board, 145mm (5.7-inch) long cable)
•   ::  I/O Module: HPN: 779100-001 ( Front I/O module assembly - For use in LFF chassis configurations - Includes power switch/LED, UID switch/LED, NIC status LED, health LED, USB 2.0 port, and serial label pull tab)
• Condition: New
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points to note on these 754522-B21 HPE CTO server:-

These are the 4-bay NHP (Non Hot-Plug) versions of the DL160 G9 servers. They have no CPU, Memory and Hard drives pre-installed. Contact enterprise support and one of our consultants will quote you on a unit to your specs.

The HPE ProLiant DL160 Gen9 is the next generation 2P 1U value server replacing DL360e Gen8. It delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of a diverse set of users- from SMBs and service providers with a wide range of workloads - from general purpose IT to the New Style of IT, such as, Big Data and Cloud.

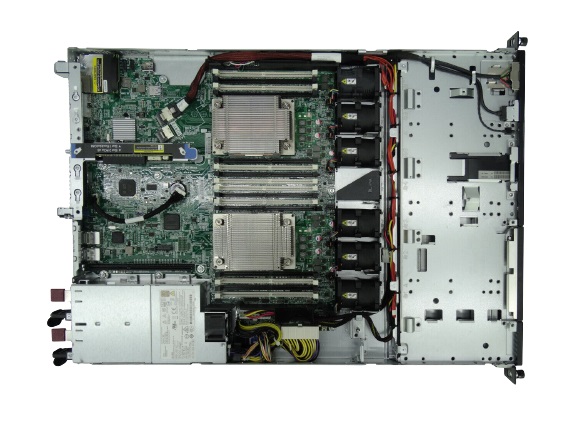

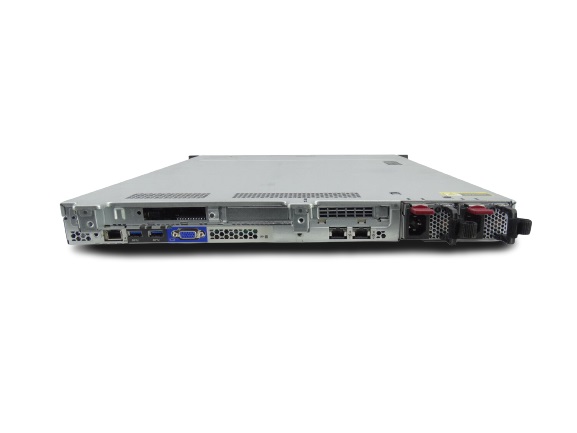

Figure 1: A sample presentation of a DL160 G9 using the hot-plug version as an example.
