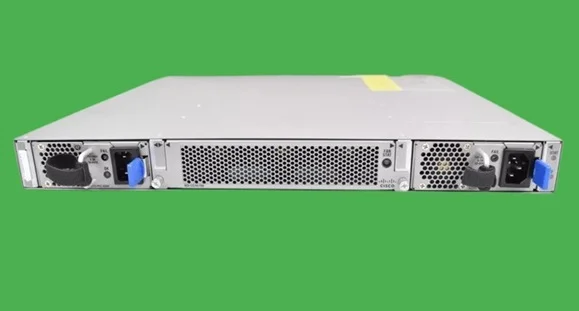

Cisco Nexus N2K-C2248TP-E-1GE 1GE 48 Port Gigabit Fabric Extender Part #: N2K-C2248TP-E
- Brand: Cisco
- Part #: N2K-C2248TP-E
- Model #: N2K-C2248TP-E-1GE
- Specs:-
- ::Type: Cisco Nexus 2248TP-E Fabric Extender
- ::Description: Nexus 2248TP 1GE 48 Port Gigabit Fabric Extender
- ::Fabric extender host interfaces: 48
- ::Fabric extender host interface type: 100BASE-T/1000BASE-T ports: RJ-45 connectors
- ::Fabric extender fabric interfaces: 4 × 10-Gigabit parent-switch facing ports for SFP+ transceivers
- ::Fabric speed: 40 Gbps in each direction (80 Gbps full duplex)
- Minimum software required:-
- ::Cisco NX-OS Software Release 5.1(3)N(1)1 (Cisco Nexus 5000 Series)
- ::Cisco Nexus 6000 Series Switches running Cisco NX-OS Software Release 6.0 and later
- ::Cisco NX-OS Software Release 6.1(1) on the Cisco Nexus 7000 Series
- ::Cisco NX-OS Software Release 6.1 on the Cisco Nexus 9000 Series
- Power supply:-
- ::N2200-PAC-400W
- ::N2200-PAC-400W-B
- ::N2200-PDC-400W
- ::and N2200-PDC-350W-B
- Fan tray: N2K-C2248-FAN and N2K-C2248-FAN-B
- Cisco parent switch required:-
- ::Cisco Nexus 5000 Series
- ::Cisco Nexus 6000
- ::Cisco Nexus 7000 Series
- ::Cisco Nexus 9000 Series
- Recommended accessories:-
- ::SFP-10G-SR-10GBASE- SR SFP Module
- ::SFP-H10GB-CU1M- Cisco Direct-Attach Twinax Copper Cable Assembly with SFP+ Connectors SFP-H10GB-CU1M
- ::SFP-H10GB-CU5M-SFP- H10GB-CU5M,5M Passive Copper Twinax Cable F, Nexus,24AWG cable assembly

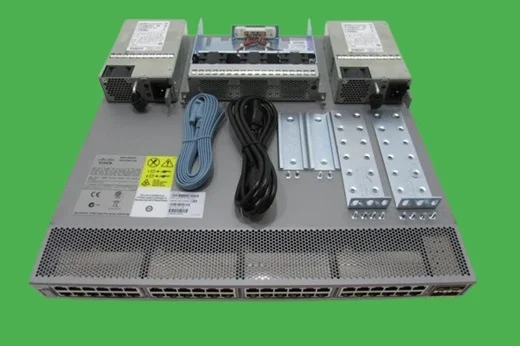

- Condition: New; open boxes with all accessories
- Warranty: 2 (two) year Tekmart Africa warranty
-
INT0305251
**Eligible for immediate collection / shipping upon order confirmation**
Generally, the Cisco Nexus 2000 Series Fabric Extenders comprise a category of data center products designed to simplify data center access architecture and operations.
They use the Cisco fabric extender architecture to provide a highly scalable unified server-access platform across a range of 100 Megabit Ethernet, 1 and 10 Gigabit Ethernet, unified fabric, copper and fiber connectivity, and rack and blade server environments.
The platform is well suited to support today’s traditional 1 Gigabit Ethernet environments while allowing transparent migration to 10 Gigabit Ethernet, virtual machine-aware unified fabric technologies.
Theses Fabric Extenders behave like remote line cards for a parent Cisco Nexus switch. They are essentially extensions of the parent Cisco Nexus switch fabric, with the fabric extenders and the parent switch together forming a distributed modular system.
This particular switche, the N2K-C2248TP-E, is a Cisco Nexus 2000 Platform Chassis, offering 2 power supply, 1 Fan Modules, 48x100/1000Base-T + 4x10GE (req SFP+), 32MB buffer, and choice of airflow.
They are therefore designed to simplify data center access architecture and operations and behave like remote line cards for a parent Cisco Nexus switch. They are essentially extensions of the parent Cisco Nexus switch fabric, with the fabric extenders and the parent switch together forming a distributed modular system.
This architecture enables physical topologies with the flexibility and benefits of both top-of-rack (ToR) and end-of-row (EoR) deployments
