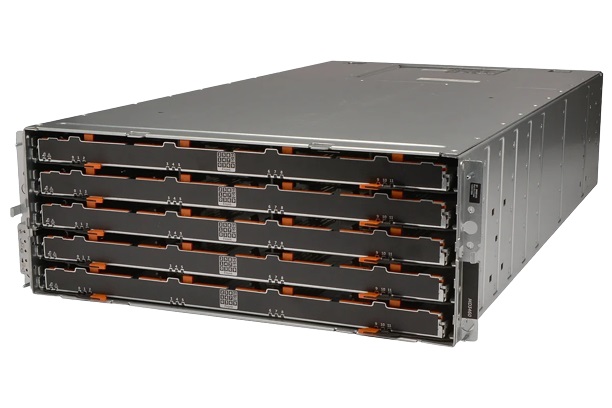

Dell PowerVault MD3060e Direct Attached Storage Array

Dell PowerVault MD3060e Direct Attached Storage (DAS) Array Populated with 60 x Dell Enterprise 300GB 15k SAS

• Brand: Dell
• Model #: PowerVault MD3060e DAS
• Condition: Manufacturer refurbished
• Specs:-
  •   ::  60 x 300GB 15k SAS 2.5" Dell Enterprise Class HDD
  •   ::  18TB Raw Capacity
  •   ::  2 x SAS 6G Enclosure Management Modules.
    •   ::  2 x SFF-8088 IN,
    •   ::  1 x SFF-8088 OUT Per Controller
  •   ::  x60 way backplane for up to 60 x 3.5" or 2.5" SAS or SAS SSD hard drives
  •   ::  Dell Dual Redundant 1755W PSUs
  •   ::  Rails Included (DPN: 0FNKJY)
  •   ::  Bezel Included
  •   ::  Connectivity via PERC H800 or H810 (Not Included)
  • Application scenario:-
  • With small-scale-to-hyperscale flexibility, the MD3060e dense enclosure is an ideal solution for:
    • ::  Hosting companies that need affordable and dense storage
    • ::  Work groups within a large IT organization, such as an R&D department
    • ::  Universities or government agencies with high performance computing (HPC) deployments that require high-density storage
    • ::  High-bandwidth or modular infrastructures, such as manufacturing, oil and gas, and video surveillance
    • ::  Financial institutions that need to process volumes of data without increasing their data center footprint
• Warranty: 1 (one) year Tekmart Africa RTB warranty
•

Key points to note on these Dell PowerVault MD3060e DAS units:-

The Dell PowerVault MD3060e storage enclosure increases application performance and maximizes storage capacity for Dell PowerEdge R630, R730, and R730xd servers with a minimal increase on the IT infrastructure's footprint.

Each 4u enclosure holds up to 60 large form factor (LFF) or small form factor (SFF) drives for a max internal storage capacity of 600TB. Expanding this enclosure to its full Direct Attached Storage (DAS) capacity with additional enclosures will provide an up to 180 drives and over 2PB of data using 10TB drives.

With full expansion a dual port Host Bus Adapter (HBA) is required. This enclosure can easily be managed through the host server and supports a wide array of operating systems. Dell's PowerVault MD3460 Storage Array is also compatible with this storage enclosure.

Key points to note on this MD3060e Storage Enclosure JBOD.

•   ::  The PowerVault MD3060e is a 4U high-density JBOD. It can be used as an expansion to the MD3xxx series of SAN's or can be connected directly to a server using a Dell PERC controller.
•   ::  It is scalable from 20 to 60 drives per enclosure with up to four MD3060es per server, the MD3060e can support a mix of SSD, SAS and SATA hard drives in either 2.5" or 3.5" form.
  •   ::  This MD3060e can be used as an expansion array or can be connected directly to a server using a PERC H800/H810. Seamless server and primary storage expansion for 6Gbps SAS environments
  •   ::  The MD3060e is a server storage solution designed to meet your business needs while eliminating complexity
  •   ::  Increase capacity and efficiency behind Dell PowerEdge server workloads

Storage

Up to 60 SFF or LFF drives provide a maximum internal storage capacity of 600TB in a 4U form factor. Administrators can configure the Dell MD3060e with a mixture of SAS, near-line SAS (NL-SAS), SSD, and Self-Encrypting (SED) drives to create the optimal environment for their data needs. To expand this enclosure to its full DAS capacity, four of these enclosures can be daisy-chained together behind a single server. A fully expanded configuration will support up to 240 drives and provide an impressive 2.4PB of data with a maximum of four enclosures and 12U rack space. Drives, power supplies, fans, and Enclosure Management Modules (EMMs) are all hot-swappable for stress-free upgrades, serviceability, and to support redundancy.

Management

The storage enclosure management software operating on the host server enables a user to monitor, manage, and update the Dell MD3060e through an in-band 6Gb/s SAS connection for optimal usability. Storage enclosure software is supported on a variety of operating systems, including Microsoft Windows Server, Red Hat Enterprise Linux, Nexenta, Ubuntu, and Debian. This flexibility allows administrators to choose the software and operating system they are most familiar with to manage their data.

In conclusion then,

The Dell PowerVault MD3060e storage enclosure is the perfect solution for businesses that need to process large volumes of data with limited space. Administrators can easily expand this enclosure to support up to 240 SFF or LFF drives for over 2PB of data using less than half of a standard rack. Hot swappable components allow the enclosure to be serviced or upgraded without disrupting application performance and support for a wide variety of operating systems allows administrators to choose to manage their data with a software of their preference.

*We have a wide range of other Dell storage systems not listed on our site . Please don't hesitate to contact us on 0861 711 712 (within RSA) or 011 027 6793 (International) should you require a specific brand and/or different specs from our listing.

Alternatively mail our storage systems team  with your request. Our storage sales consultants will gladly assist you with your purchase*.
