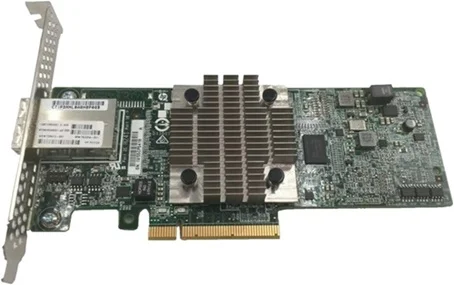

726913-001 HP H241 12Gb 2-Port Ext Smart Host Bus Adapter

HPE H241 12Gb 2-Ports SAS G9 Ext Smart Host Bus Adapter HPN: 726913-001,726911-B21,750054-001

• Brand: HPE
• Part #(s)-
• Option Part #: 726911-B21
• Spare Part #: 750054-001
• Alt. Part #: 726913-001
• Specs:
•   ::  Device Type: Smart HBA-Storage Controller
•   ::  Description: HP H241 12Gb/s Dual Port External Smart Host Bus Adapter
•   ::  Generation: H241
• Architecture:
•   ::  Serial Attached SCSI (SAS)
•   ::  Serial Advanced Technology Attachment (SATA)
•   ::  PCIe 3.0 x8
• SAS connectors:
•   ::  2 x4 external SFF-8644 (Mini-SAS HD)
•   ::  Data transfer method: 4.8GB/s bandwidth per port for combined throughput of up to 96Gb/s
•   ::  PCIe bus speed: PCIe 3.0 x8 (8GT/s maximum bandwidth)
•   ::  Simultaneous connection transfer ports: 2 x 4 mini SAS HD Connectors
•   ::  Port transfer rate: 96Gb/s per x8 mini SAS HD Ports (8 x 12Gb/s)
•   ::  Memory addressing: 64-bit, supporting servers memory greater than 4GB
• Boot mode:
•   ::  UEFI or Legacy boot mode support
• Disk drive and enclosure protocol support:
•   ::  12Gb/s SAS (Serial Attached SCSI)
•   ::  6Gb/s SATA (Serial Advanced Technology Attachment)
•   ::  Host Bus: PCIe 3.0 x8
•   ::  Controller Interface Type: SATA 6Gb/s SAS 12Gb/s
•   ::  Data Transfer Rate: 1.2GB/s
•   ::  RAID Levels supported:  0 1 5
•   ::  Supported Devices: Hard Drive, Solid State Drive
•   ::  Channel Quantity: 8
•   ::  Form Factor: Low Profile-Plug-in Module
•   ::  Connector Type:  36 Pin 4x Mini MultiLane SAS (SFF-8644)
• Compatibility:-
•   ::  HP ProLiant DL160 Gen9
•   ::  DL160 Gen9 Base
•   ::  DL160 Gen9 Entry
•   ::  DL180 Gen9
•   ::  DL180 Gen9 Base
•   ::  DL180 Gen9 Entry
•   ::  DL360 Gen9
•   ::  DL360 Gen9 Base
•   ::  DL360 Gen9 Entry
•   ::  DL360 Gen9 Performance
•   ::  DL380 Gen9
•   ::  DL380 Gen9 Base
•   ::  DL380 Gen9 Entry
•   ::  DL380 Gen9 Performance
•   ::  ML350 Gen9
•   ::  ML350 Gen9 Base
•   ::  ML350 Gen9 Entry
•   ::  ML350 Gen9 Performance
•   ::  SL210t Gen8
•   ::  SL210t Gen8 1U Node
•   ::  SL210t Gen8 2U Node
•   ::  SL250s Gen8 2U Left Half Width Tray
•   ::  SL250s Gen8 2U PCIe Gen3 Left Tray
•   ::  SL250s Gen8 2U PCIe Gen3 Right Tray
•   ::  SL250s Gen8 2U Right Half Width Tray
•   ::  SL250s Gen8 Base 2U Left Half Width Tray
•   ::  SL250s Gen8 Base 2U Left Tray Server
•   ::  SL250s Gen8 Base 2U Right Half Width Tray
•   ::  SL250s Gen8 Base 2U Right Tray Server
•   ::  SL250s Gen8 Left Tray SL250s Gen8 Right Tray
•   ::  SL270s Gen8 1U Left Half Width Tray
•   ::  SL270s Gen8 1U Right Half Width Tray
•   ::  SL270s Gen8 Base 4U Left Half Width Tray
•   ::  SL270s Gen8 Base 4U Right Half Width Tray
•   ::  SL270s Gen8 SE 4U Left Tray
•   ::  SL270s Gen8 SE 4U Right Tray
• Condition: New
• Warranty: 1 (one) year Tekmart Africa warranty
•

INT030624JCCN2024

**Eligible for immediate collection / shipping  upon order confirmation*

Key points to note on these 726913-001 HP H241 HBAs:-

First an overview...

The HPE H241 Smart Host Bus Adapter is a 2X4 12Gb/s SAS external port HBA that provides users with the flexibility and speed expected from HPE. The H241 Smart HBA is ideal for external connectivity to tape drives, shared storage, and external JBODs providing support for both 12G SAS and 6G SATA Hard Disk Drives.

They can also provide high performance for SSDs that do not require data protection. The H241 Smart Host Bus Adapter provides flexibility to run in HBA mode or simple RAID mode. When operating in simple RAID mode, it provides RAID 0, RAID 1, and RAID 5 with optional HPE Secure Encryption capabilities.

Unlike the HPE Smart Array Controllers, the H241 does NOT offer any acceleration or support cache modules.

These adapters provide up to 12Gb/sec transfer rate SAS and 6Gb/sec transfer rate SATA (does NOT support cache modules) connectivity to select HPE ProLiant servers and hence are well-suited for enterprise network and storage device connections.

In a snap shot then, these HPE H241 12Gb 2-ports Ext Smart Host Bus Adapters feature the below:-

Performance:

• ::  12Gb/s SAS (bandwidth per physical link)
• ::  96Gb/s total available bandwidth (8 physical links x 12Gb/s)
• ::  PCIe 3.0 host interface x8 (8GT/s bandwidth per lane)

HPE Server Integration:

• ::  Fully integrated and tested with ProLiant servers and management software.

Key features:

• ::  SAS technology delivers high performance and data bandwidth up to 12Gb/s per physical link
• ::  Mix-and-match SAS and SATA hard drives; deploy drive technology as needed
• ::  PCIe 3.0 x8 ( 8GB/s bandwidth)

Ports:

• ::  Eight (8) SAS physical links distributed across 2 x4 external SFF-8644 Mini-SAS HD connectors

Capacity:

• ::  Eight 12Gb/s SAS physical links supporting up to 2 simultaneous x4 Wide SAS Ports
• ::  Capacity up to 576TB of SAS or 576TB SATA

Form factor: Either high-profile or low-profile PCIe 3.0 slots (parts included with option)

Off Line: HPE Smart Component for HPE H241 Smart Host Bus Adapter
