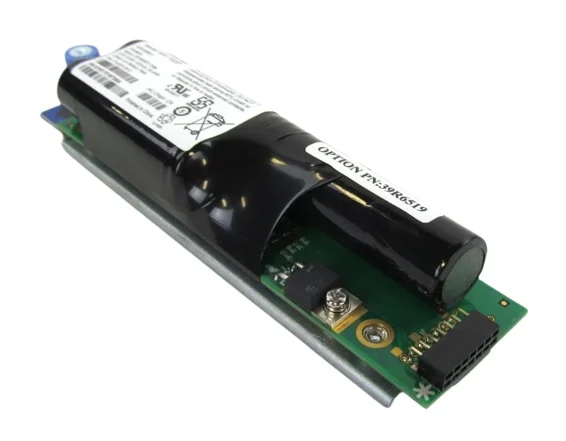

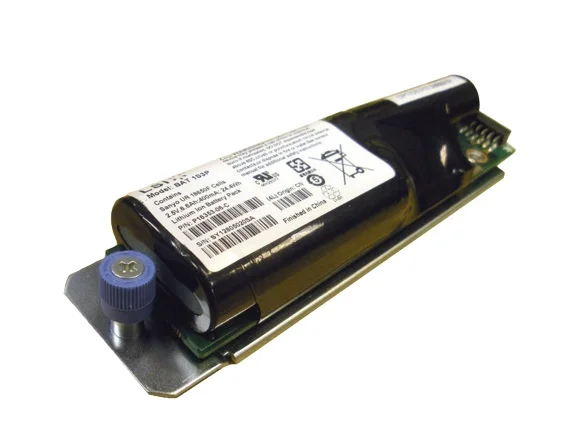

IBM SS DS3000 Memory Cache Battery FRU: 39R6519

• Brand: IBM
• Part #: 39R6519
• Condition: New
• Warranty: 1 (one) year Tekmart warranty

Product description

The item could be used on any  of the following IBM servers:

• DS3200, Type 1726, any model
• DS3300, Type 1726, any model
• DS3400, Type 1726, any model

The system is configured with one or more of the following IBM Options:

• DS3000 System Memory Cache Battery, Option 39R6519
• BladeCenter Boot Disk System, Option 172622B

Usage

IBM System Storage DS3200, DS3300, and DS3400 support single or dual Redundant Array of Independent Disks (RAID) controllers. Each controller has 512 megabytes (MB) of cache (upgradeable to 1 gigabyte (GB)) and a Smart cache battery pre-installed. The battery is designed to have a life expectancy of two (2) years and to maintain the data in cache for up to three (3) days in the event of a power outage.

Users are encouraged to install controller firmware version 07.35.41.00 or later to take advantage of the Smart Battery Learn Cycle technology, which monitors battery life. The Smart battery, along with code level 07.35.41.00 or later, performs a battery discharge and charge function every 13 weeks, which allows the system to more accurately calculate the life of the battery.

Note that the write cache function is suspended during the battery learn cycle and performance may be impacted. If a user wishes to disable the battery learn cycle so that the write cache function is not suspended, then refer to RETAIN tip H195594 for a description of how to accomplish that.

The replacement batteries are an option that the user must purchase. The user must purchase DS3000 System Memory Cache Battery, Option 39R6519, as the replacement battery.

Note: A very small subset of users at the very beginning of the product life may have received a version of the battery that does not support the Smart Battery Learn Cycle technology. One way to verify this is a visual inspection of the battery. The Smart battery version is identified on the part by label, 16353-04 or later.

Another method for verifying installation of the Smart Battery is to check Storage Manager for the information on the Battery Learn Cycle. This information can be found on the Tools tab under Change Battery Settings.

When running controller firmware level before 07.35.41.00 or with while the Smart Battery Learn Cycle is disabled on controller firmware 07.35.41.00 and higher:

IBM DS Storage Manager is designed to alert the user that the batteries have expired and should be replaced. IBM recommends to replace the battery after the expiration warning message is received. Users will have to order the Battery Backup Unit (BBU) option, Option 39R6519, via IBM Direct or their DS3000 Business Partner.

When running controller firmware level 07.35.41.00 and higher:

With Smart Battery Learn Cycle enabled, users no longer need to rely on the time expiration battery strategy. If the expiration timer still appears and nears expiration then reset the timer since its importance is superseded by the Smart Battery Learn cycle. With Smart batteries, the system will provide an error message once the battery is no longer able to maintain the up time requirement of 72 hours. Replace the battery option if you receive a "Defective Battery" error message.
