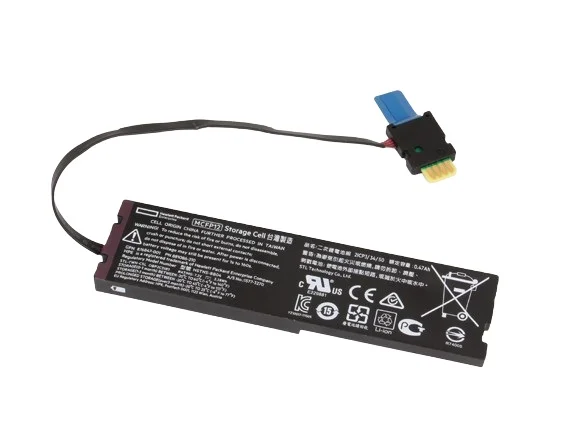

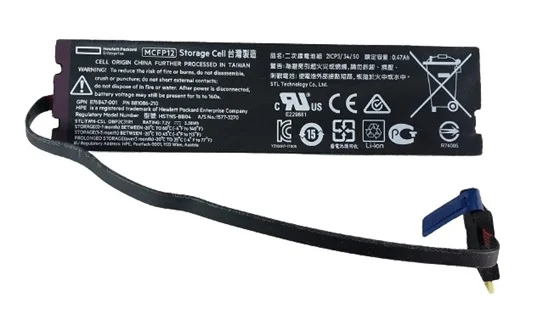

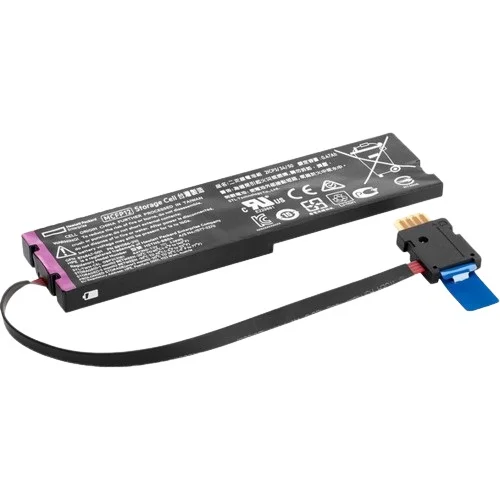

HPE Gen10 Series 12W Smart Storage Battery Unit Part #: 878641-001

• Brand: HPE
• Part #: 878641-001
• ::  Alt. Part #: 878641-001
• Model specific Part #:-
• ::  Gen9: 782961-B21
• ::  Gen10:875239-B21
• ::  Spare Part #: 871267-001
• ::  Smart Storage Battery v. 2 Part #:
• ::  Gen9 & Gen10: P01364-B21
• Specs:-
•   ::  Type: HPE Smart Storage Battery for AMD G10 Servers
•   ::  Description: HPE 12W Smart Storage Battery with Plug Connector with 230mm cable
• Compatibility:
•   ::  HPE ProLiant XL270d Gen9 Server
•   ::  HPE ProLiant XL260a Gen9 Server
•   ::  HPE ProLiant DL360 Gen10 Server
•   ::  HPE ProLiant BL460c Gen10 Server Blade
•   ::  HPE Synergy 660 Gen10 Compute Module
•   ::  HPE ProLiant DL380 Gen10 Server
•   ::  HPE ProLiant DL560 Gen10 Server
•   ::  HPE ProLiant XL230k Gen10 Server
•   ::  HPE ProLiant XL170r Gen10 Server
•   ::  HPE ProLiant XL190r Gen10 Server
•   ::  HPE ProLiant DL580 Gen10 Server
•   ::  HPE ProLiant ML110 Gen10 Server
•   ::  HPE ProLiant ML350 Gen10 Server
•   ::  HPE ProLiant XL450 Gen10 Server
•   ::  HPE ProLiant DL385 Gen10 Server
•   ::  HPE ProLiant DL180 Gen9 Server
•   ::  HPE ProLiant DL360 Gen9 Server
•   ::  HPE ProLiant BL460c Gen9 Server Blade
•   ::  HPE ProLiant DL380 Gen9 Server
•   ::  HPE Smart Array P244br Controller
•   ::  HPE Smart Array P440ar Controller
•   ::  HPE ProLiant XL230a Gen9 Server
•   ::  HPE ProLiant XL250a Gen9 Server
•   ::  HPE ProLiant DL388 Gen9 Server
•   ::  HPE ProLiant DL120 Gen9 Server
•   ::  HPE ProLiant ML150 Gen9 Server
•   ::  HPE ProLiant ML110 Gen9 Server
•   ::  HPE Smart Array P246br Controller
•   ::  HPE ProLiant XL170r Gen9 Server
•   ::  HPE ProLiant XL190r Gen9 Server
•   ::  HPE ProLiant WS460c Gen9 Graphics Server Blade
•   ::  HPE ProLiant BL660c Gen9 Server Blade
•   ::  HPE ProLiant DL560 Gen9 Server
•   ::  HPE Apollo 4200 Gen9 Server
•   ::  HPE Apollo 4500 System
•   ::  HPE ProLiant XL450 Gen9 Server
•   ::  HPE ProLiant DL20 Gen10 servers (A single 12W battery can support up to three devices on this server)
• Condition: New
• Warranty: 1 (one) year Tekmart Africa warranty
•

Key points to note on these 878641-001 HPE Smart Storage Batteries (version 2)

A new HPE Smart Storage Battery (version 2) was introduced late in 2017 because the controller board in the Smart Storage Battery released with HPE Gen9 servers and used in early HPE Gen10 servers is now End-of-Life (EOL).

HPE Integrated Lights-Out (iLO) firmware updates are not required for the version 2 battery to function correctly in a server.

Tekmart Caveat:

Smart Storage Battery replacements will continue to be fix on failure or pre-failure as identified while running the iLO 4 2.55 firmware (or later) for Gen9 servers or any iLO 5 firmware for Gen10 servers.

When ordering a spare part, use the spare part number of the Smart Storage Battery in the server. If no version 1 batteries are available, the version 2 battery will be recommended.

As an example, an HPE ProLiant DL20 Gen10 server supports the 12 W HPE Smart Storage Battery with the 230 mm cable. A single 12 W battery can support up to three devices.

After the battery is installed, it might take up to two hours to charge. Controller features requiring backup power are not re-enabled until the battery is capable of supporting the backup power.
