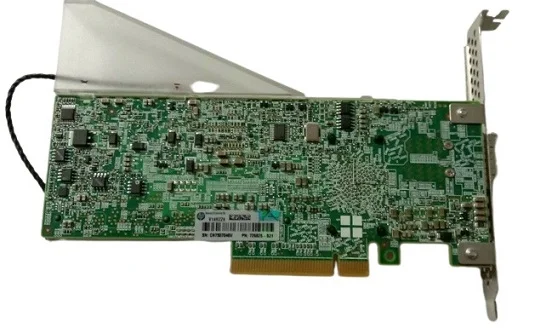

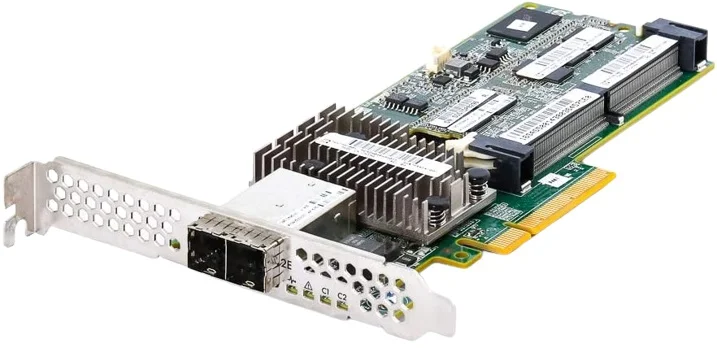

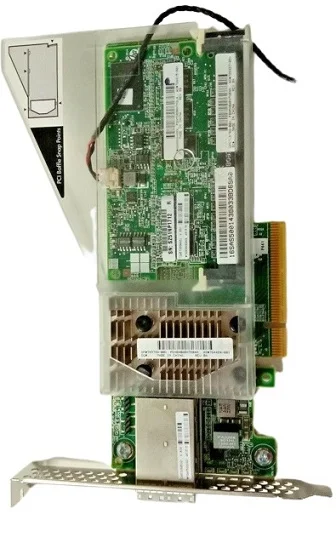

749798-001 HPE 12G Smart Array P441/4GB FBWC Ext SAS 2-port

HPE Smart Array P441/4GB FBWC 12Gb 2-Ports Full Height SAS RAID Controller HPN: 749798-001,726825-B21

• Brand: HPE
• Part #(s):
•   ::  Manufacturer Part #: 726825-B21
•   ::  Spare Part #: 749798-001
•

Please take note:
** Please confirm and advise on  your desired bracket (Low Profile or Full Height) in the comments  field at checkout **

Compatibility:

•   ::  Proliant DL Series: DL560 (G9) servers
•

Key points to note on these 749798-001 HPE Smart Array Raid Controllers:-

These are the genuine HPE Smart Array P441 PCI Express 3.0 X8 12GB 2 ports Ext LP SAS Controller Card With 4GB FBWC replacement spare parts.

The HPE Smart Array P441 Controller is a low-profile, PCIe3 x8, 12 Gbps Serial Attached SCSI (SAS) RAID controller that provides enterprise-class storage performance, increased external scalability, and data protection for select HPE ProLiant Gen9 rack and tower servers.

It features eight external physical links and delivers increased server uptime by providing advanced storage functionality, including online RAID level migration (between any RAID levels) with flash back write cache (FBWC), global online spare, and pre-failure warning.

This controller includes transportable FBWC allowing the data in the cache to be migrated to a new controller. The Gen9 controllers support the HPE Smart Storage Battery that allows multiple Smart Array controllers to be supported, resulting in simple upgrade process.

The HPE 749798-001 Smart Array P441 Controller is a storage controller that supports SATA 6Gbps / SAS 12Gbps interface formatted with RAID levels RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM supported.

This HPE Smart Array P441 Controller is suited for HPE ProLiant Gen9 Servers, MSA 2040 Storage.

These Gen9 family of controllers support the HP Smart Storage Battery. With HP Smart Storage Battery, multiple Smart Array controllers are supported without needing additional backup power sources for each controller, resulting in simple upgrade process

•   ::  The SA-P441 Controller supports up to 200 physical drives
•   ::  The SA-P441 Controller supports the HP D3600 Disk Enclosure and HP D3700 Disk Enclosure (up to 8 daisy chained in dual domain configuration). Seamless upgrades to current or next generation HP high performance and high capacity Serial Attached SCSI Smart Array controllers.
•   ::  12Gb/s SAS technology delivers high performance and data bandwidth and contains full compatibility with 6Gb/s SATA technology
•   ::  PCI Express Gen3 x8 link width delivers high performance and data bandwidth up to 8GT/s theoretical maximum bandwidth
•   ::  4 GiBytes Flash Backed Write Cache kit (FBWC) provides read ahead caching and write back caching with indefinite write cache data retention in the case of unexpected power outage
•   ::  Supports legacy and UEFI boot operation on Gen9 servers
•   ::  Standard on the P441 are RAID 6, RAID 60, RAID 1 ADM, Capacity Expansion, mirror split, recombine, and rollback in Online Mode, Drive Erase, Performance Optimization-Degraded Reads and Read Coalescing, Move/Delete any individual LUNS
•   ::  The HP SSD Smart Path feature included in the Smart Array software stack improves SSD reads for all RAID levels and RAID 0 write operations by optimizing the path to each SSD attached to the controller
•   ::  The HP SmartCache feature (HP Smart Cache license is required on P441) is a controller-based read and write caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads
•   ::  HP Secure Encryption is a Smart Array controller-based data encryption solution for ProLiant Gen9 servers that protects sensitive, mission critical data.
•   ::  Mix-and-match SAS and SATA hard drives lets you deploy drive technology as needed to fit your computing environment
•   ::  Support for SAS tape products
•   ::  Software consistency on most current shipping Smart Array products: HP Smart Storage Administrator (HP SSA), HP Systems Insight Manager, and HP Intelligent Provisioning. The HP Smart Storage Administrator configures and manages a host of Smart Array controllers and other storage devices using a single interface. It replaces the HP Array Configuration Utility (ACU) with an updated design and configuration enhancements.
•   ::  Low-profile PCI Express form factor - ships with a full size (attached) and a low profile bracket for deployment flexibility based on slot availability
•   ::  Rapid rebuild
•   ::  HBA or RAID mode
•   ::  Power efficiency
•   ::  12Gb/s SAS (1200 MB/s theoretical bandwidth per physical lane) with D3000 Storage enclosures
•   ::  x8 6Gb/s SAS physical links (compatible with 6Gb/s SATA)
•   ::  4 GiBytes 72-bit wide DDR3-1866 Flash Back Write Cache provides up to 14.9GB/s maximum cache bandwidth
•   ::  PCI Express Gen3 x8 link width
•   ::  Read ahead caching
•   ::  Write-back caching
