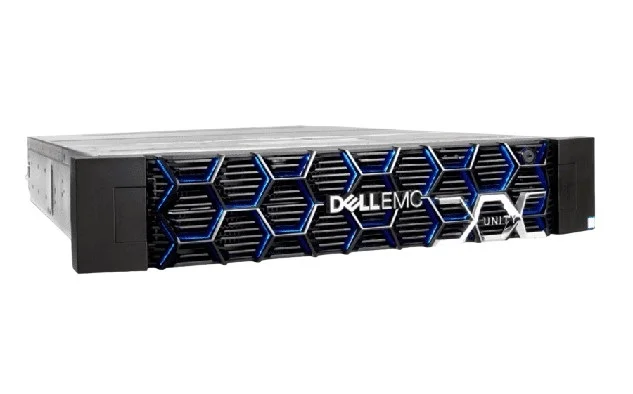

(image for) Dell EMC Unity 650F All Flash Server-CONFIGURE-TO-ORDER (CTO)

Dell EMC Unity 650F All Flash Server-CONFIGURE-TO-ORDER (CTO)

Model: CTO650F, Dell Unity 650F
Shipping Weight: 20 kg
In Stock: 3
Manufactured by: Dell

Dell EMC Unity 650F All Flash Server-CONFIGURE-TO-ORDER (CTO)

(0 Reviews) Add Your Review

Call for price

Description

Dell EMC Unity 650F All Flash Server-CONFIGURE-TO-ORDER (CTO)

Brand: Dell
Part #: CTO650F
Base Spec:-
:: Processor #: 1x Intel Xeon E5-2680 14-Core 2.4 GHz CPU
:: Memory: 4x 64GB DDR4 DIMM Modules
:: CNA Port #: 2x embedded (4 configurations possible)
:: Port #: 2x 10GbaseT / 2 mini-HD SAS Port / 2 PCI 3.0 / x8 lane I/O module slots (6 Modules supported)
:: HDD #: 25x 800GB Flash Drives (EMC Part #: 118033288-01)
:: Condition: Demo units; ex-data center hardware
Warranty: 1 (one) year Tekmart Africa warranty

To Configure This System, Please Contact our Enterprise Technical Team

Key points to note on these Dell Unity 650F units:-

Dell EMC Unity 650F All Flash

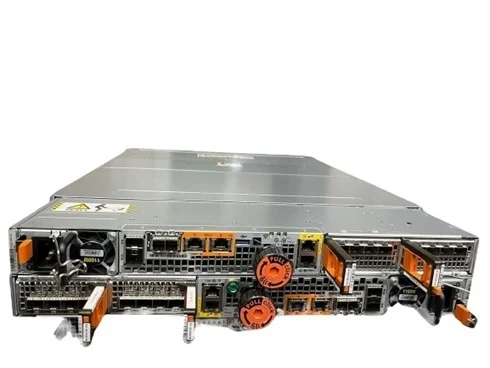

The all-flash Models support only 1 Drive Carrier type, the 25x2.5 inch. Each Dell Unity 650F has 2 Storage Processors (SP’s) in the rear with 2 CNA ports and 2 Module slots that can hold up to 6 different modules.

The Dell EMC Unity hybrid models are the only ones to support FAST and FAST VP technology which helps with tiered storage and accessibility to high-frequency data.

25-drive DPE:

:: Dimensions: 8.64 cm x 44.45 cm x 61.39 cm)
:: Weight: 20 kg
:: Form Factor: 2U
:: Max Memory: 256GB
:: Supported Back-End I/O modules: Four-port 12-Gb/s SAS
:: Max. SAS I/O ports per SP: 6 (2 embedded and 4 I/O mini HD SAS ports)
:: Support for File, Block (FC, iSCSI & FCoE) and UnifiedI/O Supported:

Storage Processor (SP):
The Dell EMC Unity 650F has 2 Storage Processors.
Each SP comes with:

:: 1x Intel Xeon E5-2680 14-Core 2.4 GHz processor.
:: 4x 64GB DDR4 DIMM for a total of 256GB of memory
:: 2x embedded CNA ports (4 configurations possible)
:: 2x 10GbaseT ports
:: 2x mini-HD SAS ports
:: 2x PCI 3.0, x8 lane I/O module slots (6 Modules supported)

CNA Ports:
Each SP contains two integrated CNA ports (labeled 4 and 5). These ports are PCI Express 3.0 x4 adapters that provide interfaces that can be configured as Ethernet, or Fibre Channel, but once set to a protocol, cannot be changed.

If CNA ports are set to Ethernet, you can use 1Gb/s, 10Gb/s SFPs, Twin-AX for File (IP), or iSCSI Block access. If the ports are set to Fibre Channel, then you can use SFPs supporting 4, 8, 16 Gb/s FC multi-mode, or single-mode SFPs supporting 16Gb/s only.

Note: The four CNA ports cannot be configured independently; they must all be configured with the same network protocol.

I/O Modules:
Each SP has two slots that can support 6 different options.

:: 4-port 12-Gb/s SAS I/O module
:: 4-port 16-Gb/s Fibre Channel I/O module
:: 4-port 10-Gb/s optical I/O module
:: 4-port 10GBASE-T I/O module
:: 4-port 1GBASE-T I/O module
:: 2-port 10Gb/s optical I/O module

Please note: When adding new I/O modules, always install I/O modules in pairs—one module in SP A and one module in SP B. Both SPs must have the same type of I/O modules in the same slots. Please read the manual first for more details to each module.

Standby Power Supply

25 DPE

:: AC 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
:: DC Line Voltage -39 to -72 V DC (Nominal -48V or -60V power systems)

Disk Array Enclosure (DAE)
The Dell EMC Unity 650F supports all two types of DAE’s. When calculating the number of drives make sure to count the DPE drives as well in the total.
